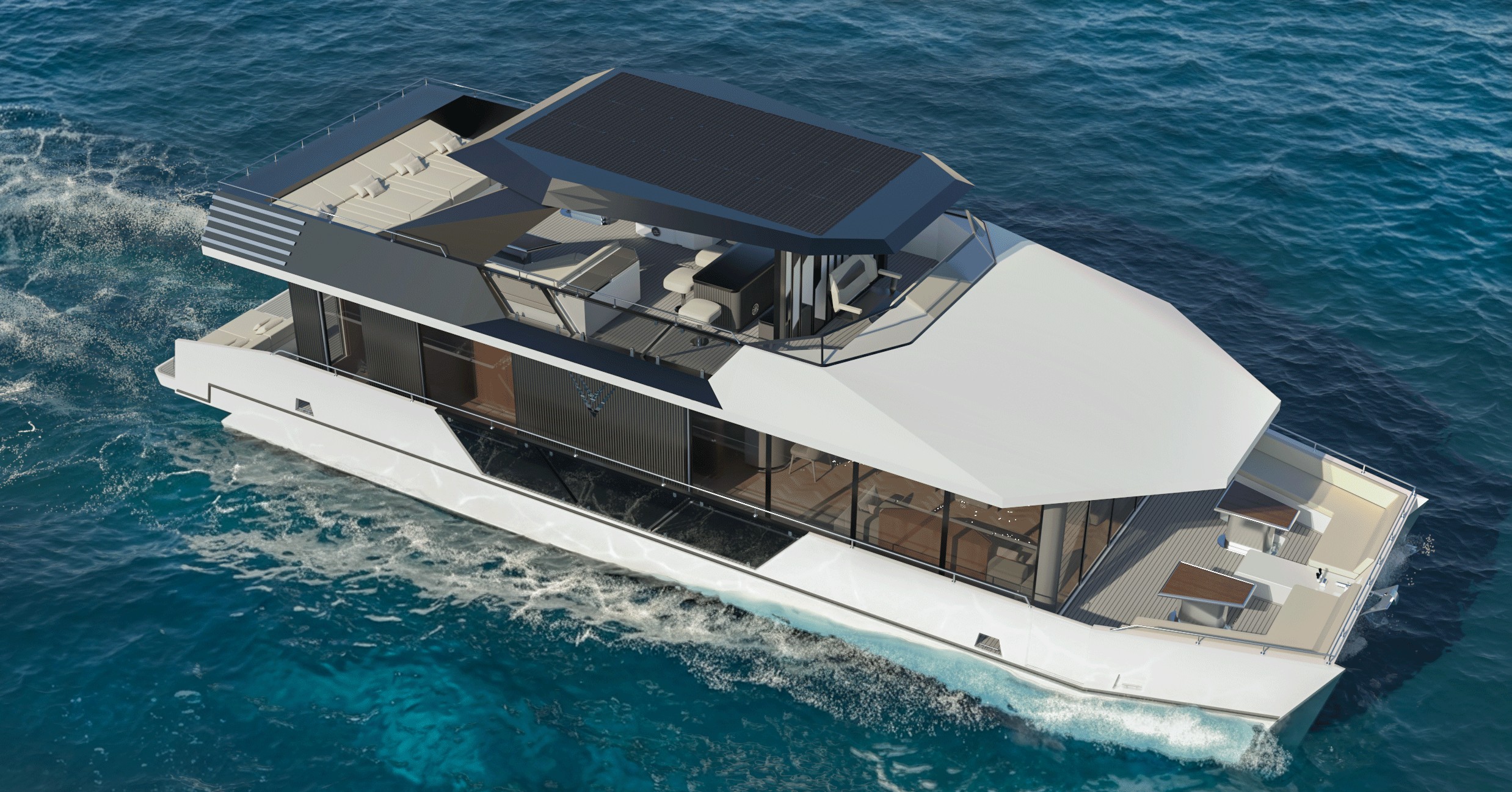

The Compact V-CAT

Rise 60

A 60 feet GRP catamaran with 169 m² of usable living space, outboard power and a shallow draft that opens island bays and coastal moorings across the Gulf.

Length: 18.3 m
Beam: 6.5 m
Draft: 0.70 m
Usable area: 169 m²

Walkthrough

Step aboard

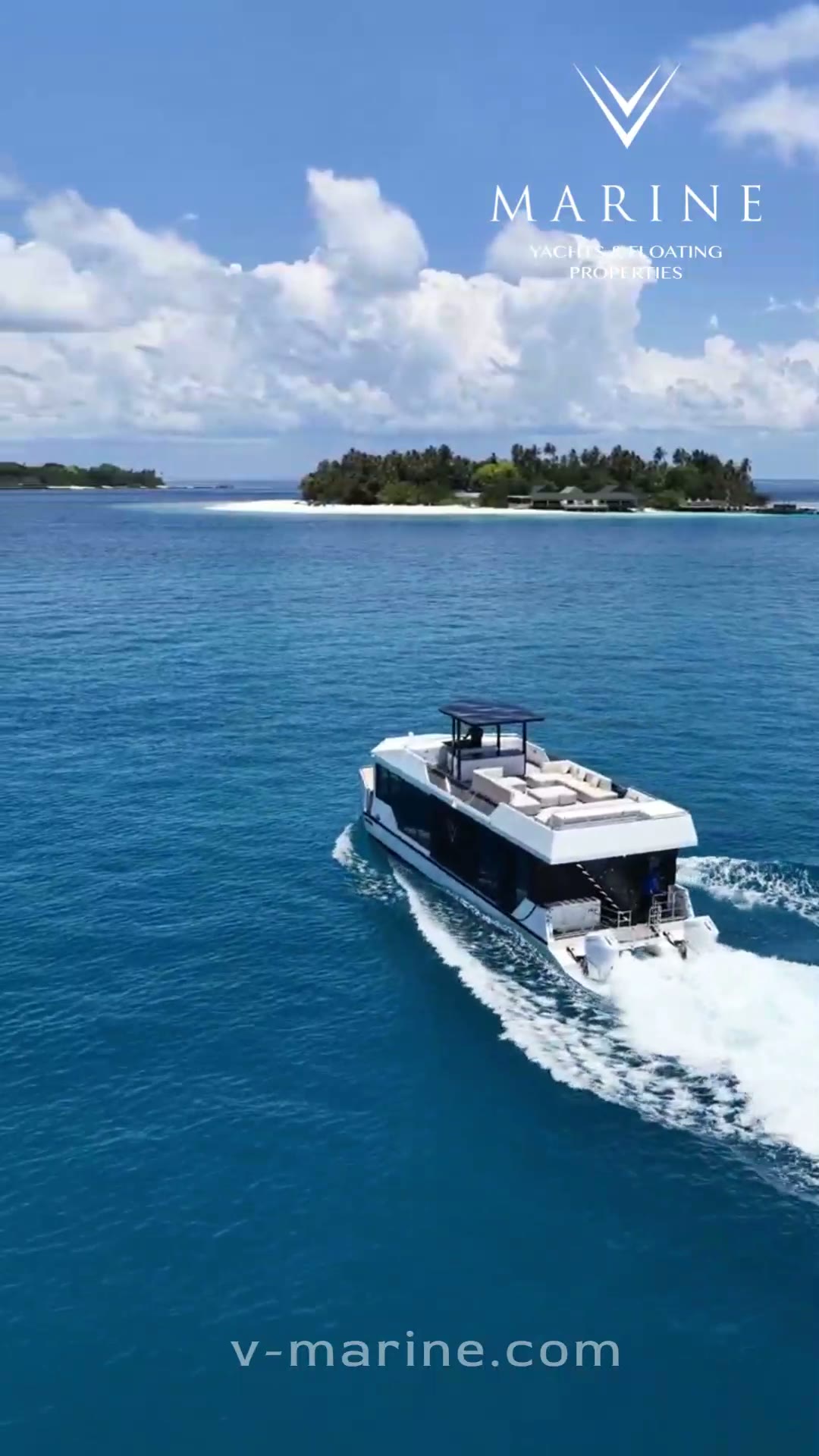

Thirty seconds on the water, from the saloon and aft deck to the master suite, filmed aboard a delivered RISE 60 in the Maldives.

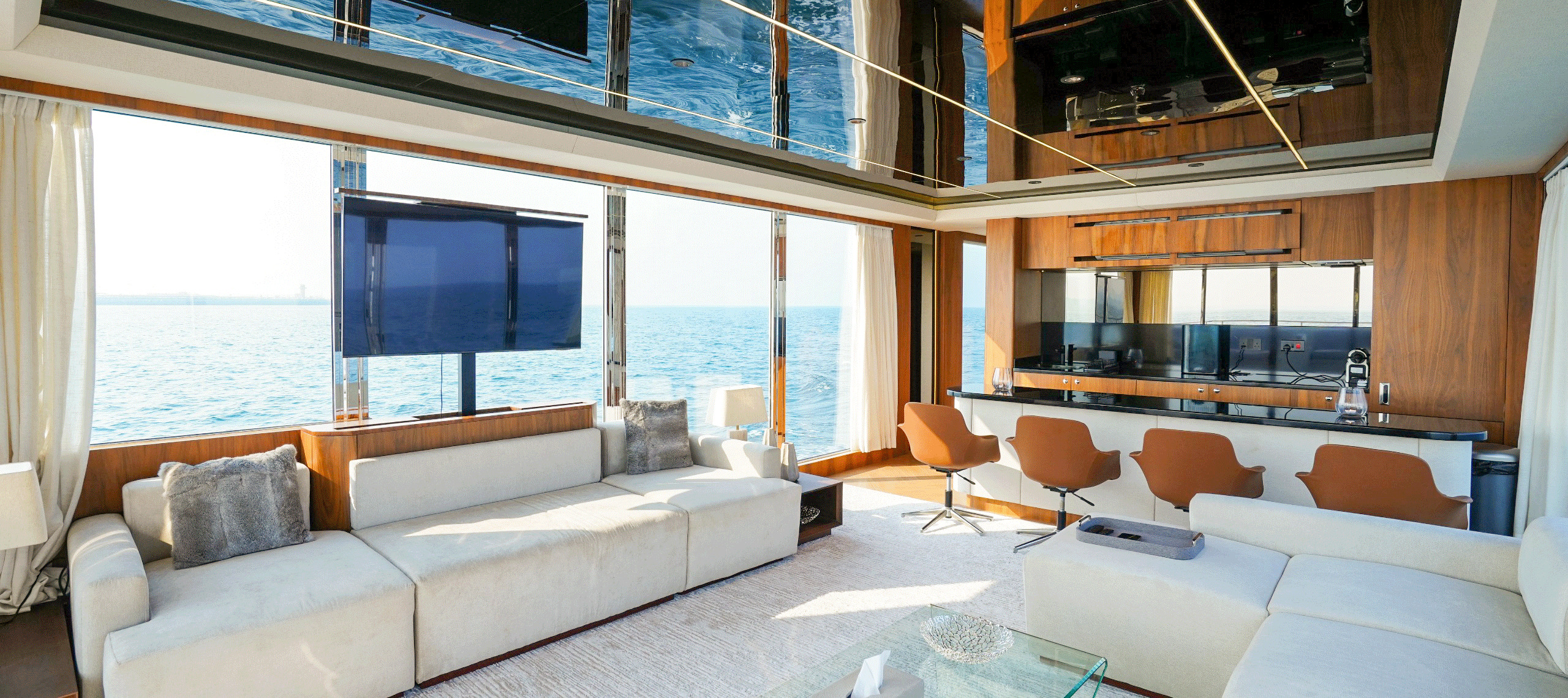

Main Saloon

A single open volume combining lounge and dining, wrapped in glass on three sides for uninterrupted sea views.

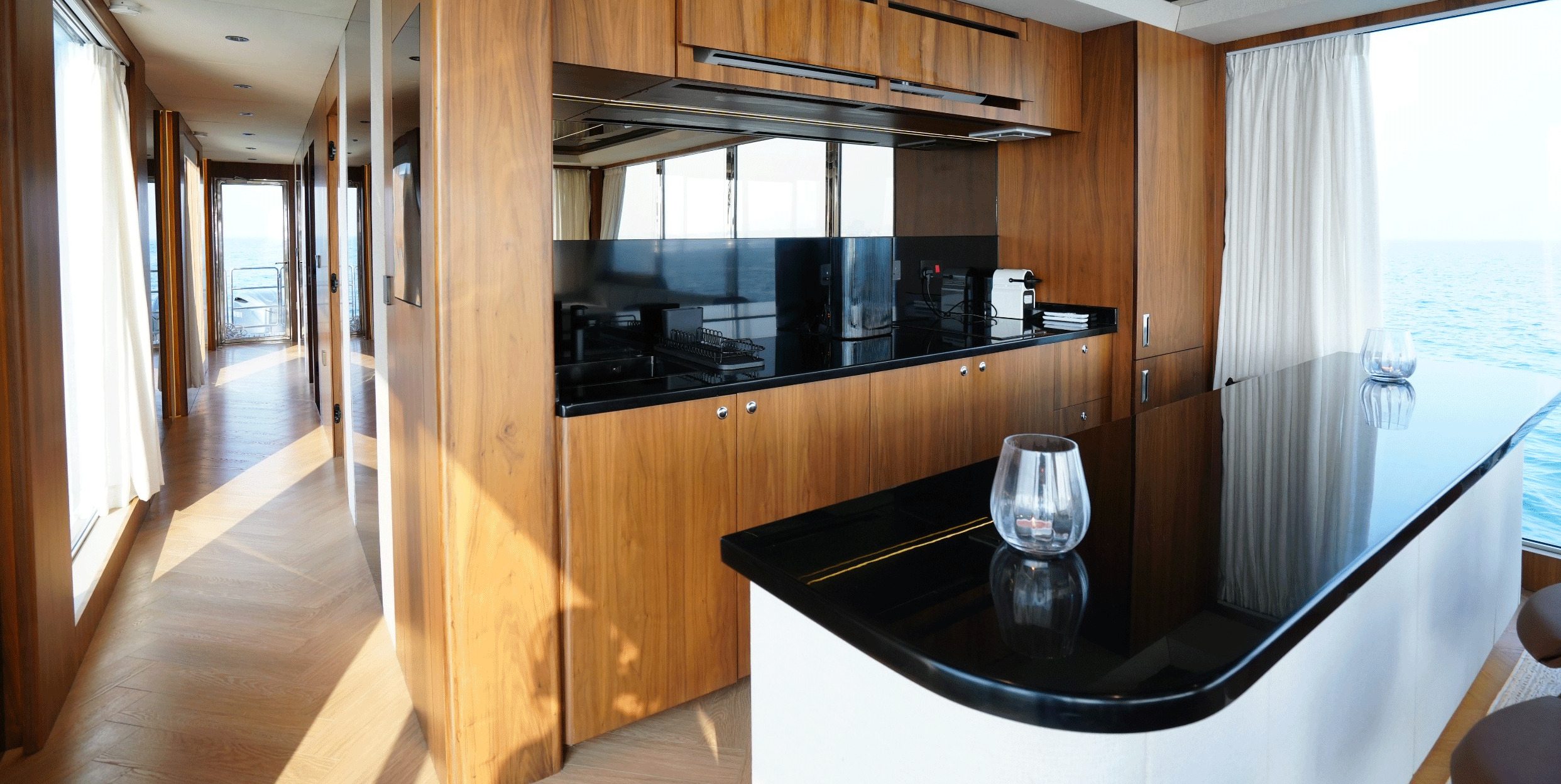

Galley

A full-service galley aft of the saloon, fitted with a cooker, refrigerator, microwave and coffee machine.

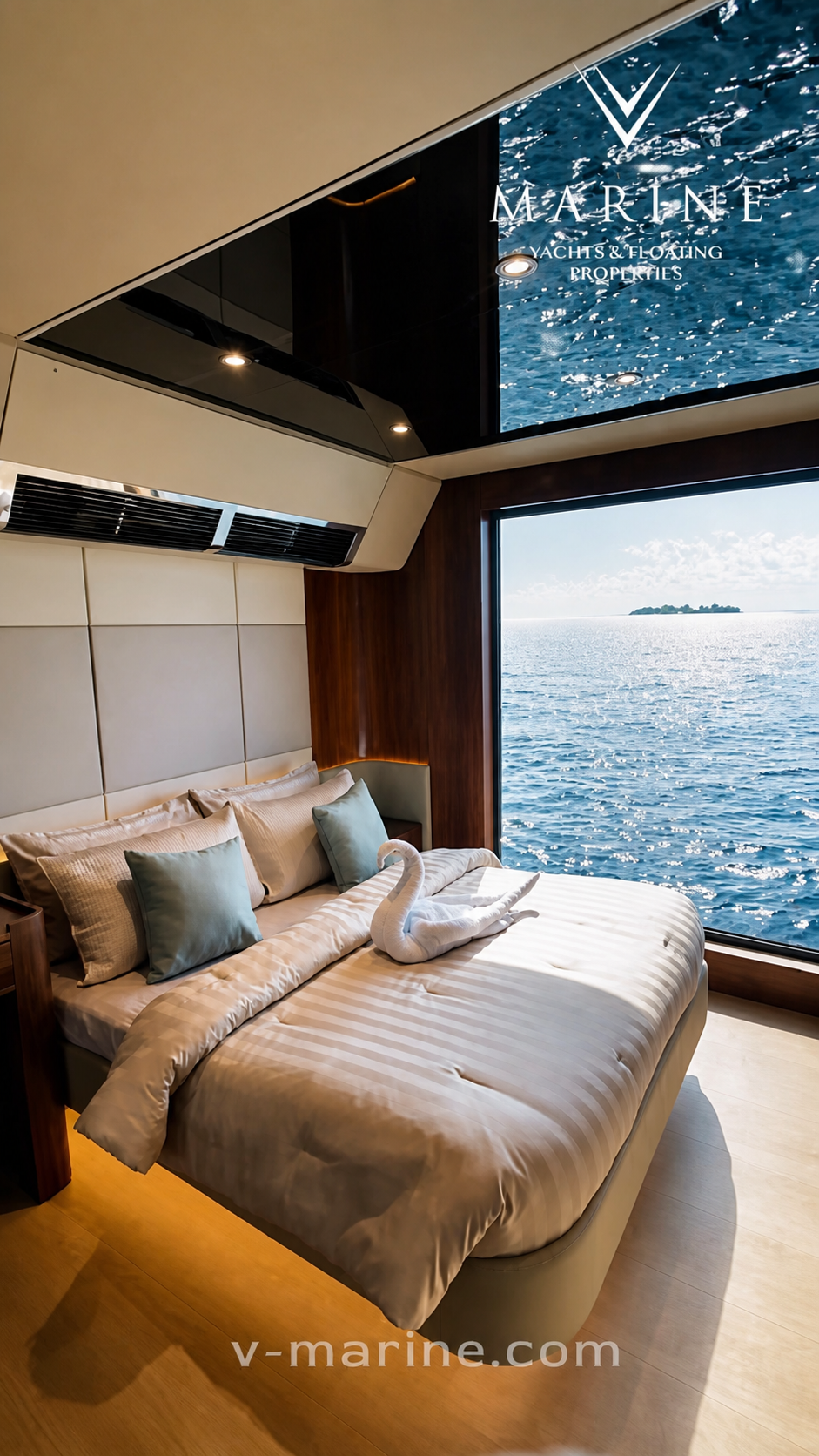

Master Suite

Forward master cabin with a queen berth, full-height storage and its own en-suite bathroom, waking up to a panoramic sea view.

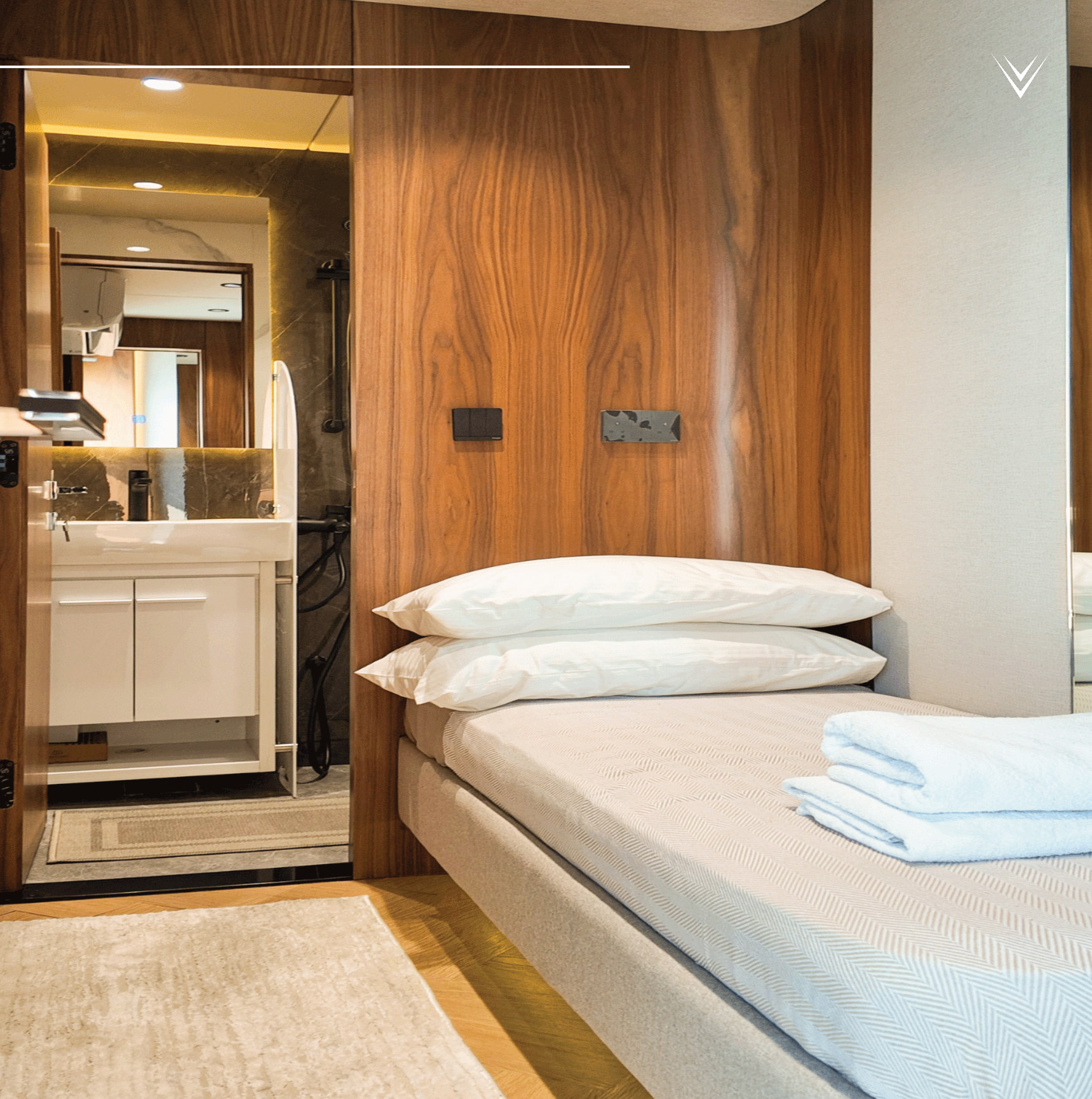

Captain Cabin

A private captain's cabin, single or twin berth with its own head, keeps crew quarters independent of the owner's spaces.

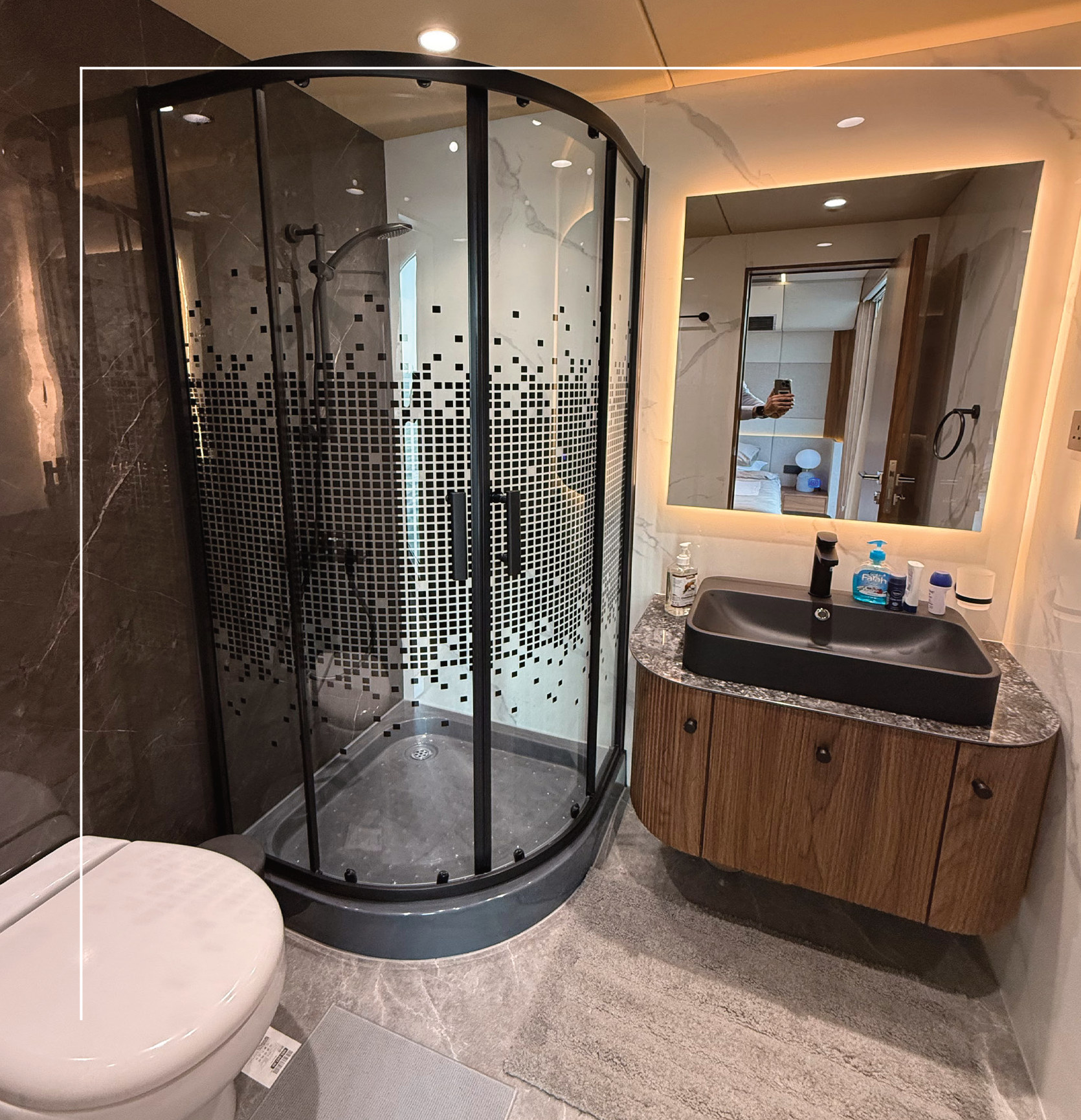

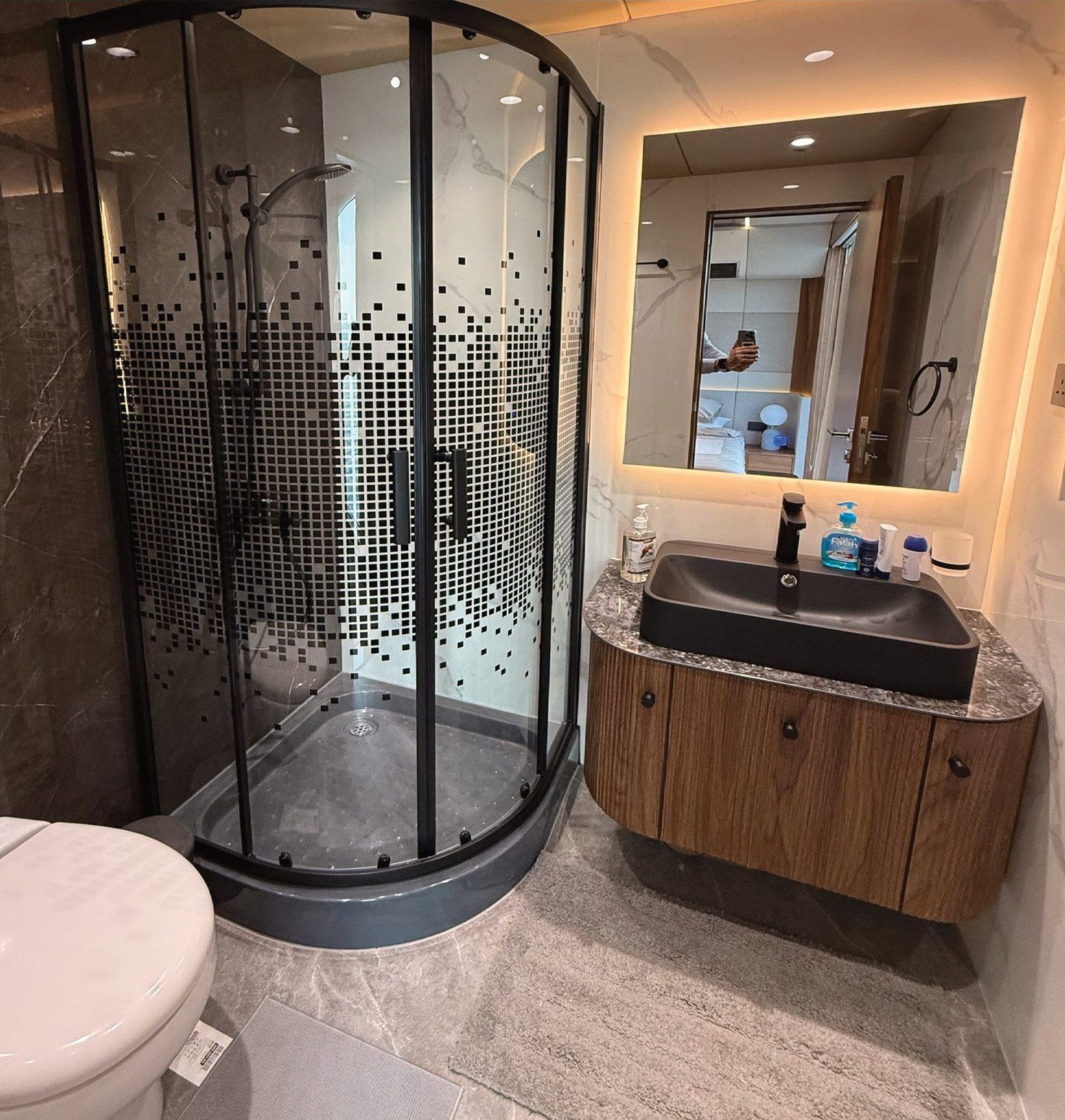

RISE 60 head with glass shower enclosure, stone basin and timber joinery

Heads

Every cabin has its own head, with a glass shower, stone basin and timber joinery throughout.

Technical Overview

Specifications

Main specifications and standard marine equipment for the RISE 60.

Main Specifications

Length: 18.3 m / 60 ft
Beam: 6.5 m / 21.3 ft
Usable area: 169 sqm / 1,819 sqft
Draft: 0.70 m / 2.29 ft
Speed: 10 – 12 knots
Displacement: 35,000 kg

Tanks

Water tank: 750 L
Fuel tank: 1000 L
Black water tank: 500 L

Engines & Power

Engines with steering system: 2 × 350 HP recommended, electric steering
Recommended generator: 13.5 kVA
Bow thruster: Standard
Anchor winch: Standard

Marine Equipment

Navigation system: Garmin 12”
Marine sound system: 8 speakers + 1 subwoofer
Underwater lights: 10 units
Radar: Standard

Layout

Three levels,
one continuous living space

The three levels of the RISE 60. Options and personal touches can be discussed with our team.

Download the brochure

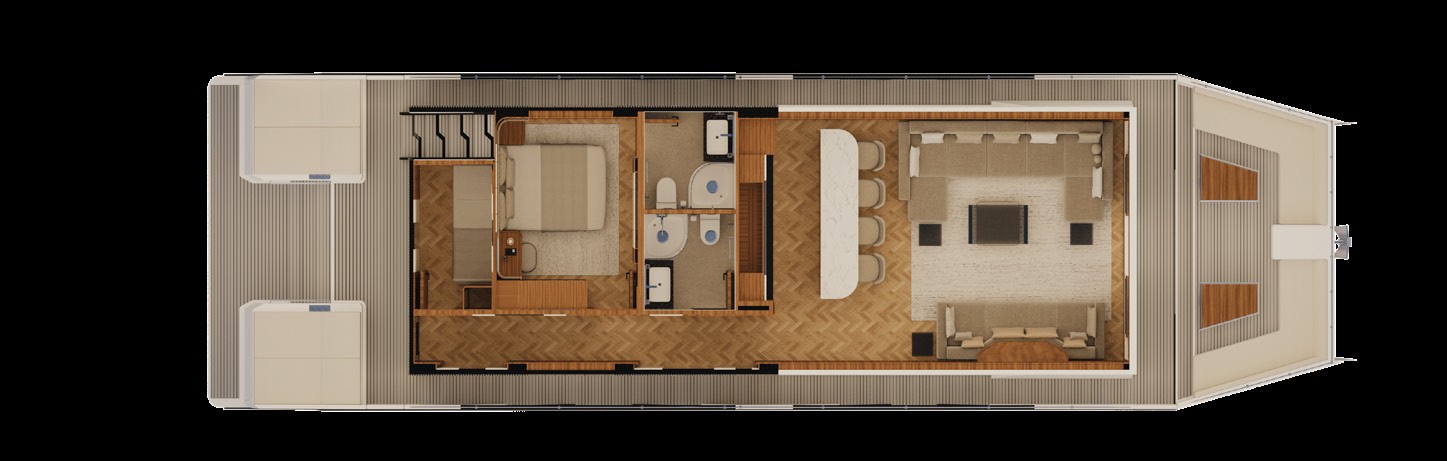

Main Deck

Open-concept saloon and galley aft, master suite with deluxe bathroom forward and a private captain's cabin with its own bathroom.

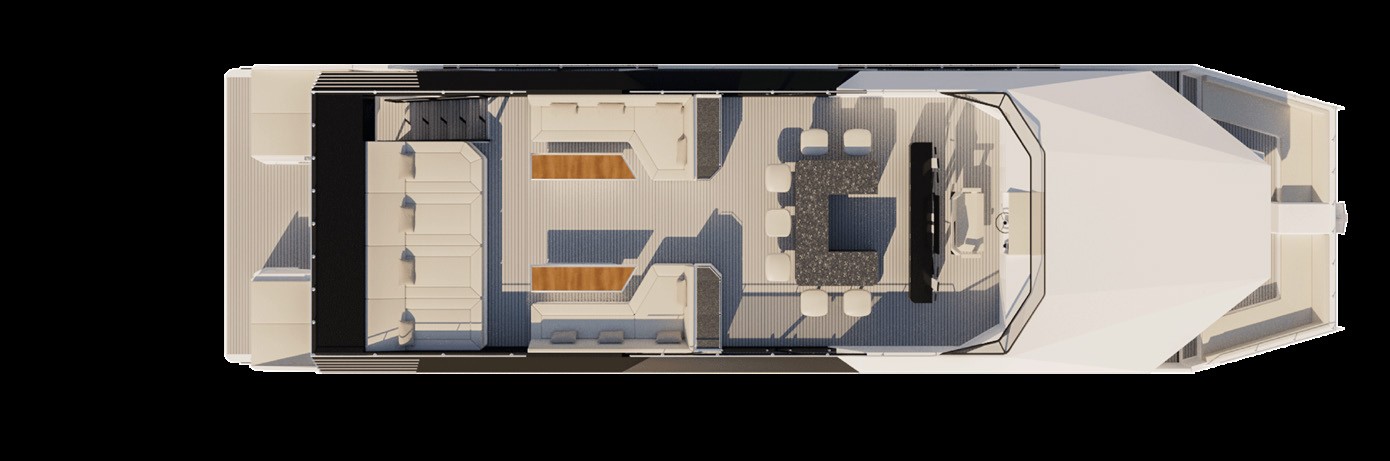

Flybridge

The flybridge: open-style bar and kitchen, sunloungers, lounge and dining, with the captain's central navigating point and all-round visibility.

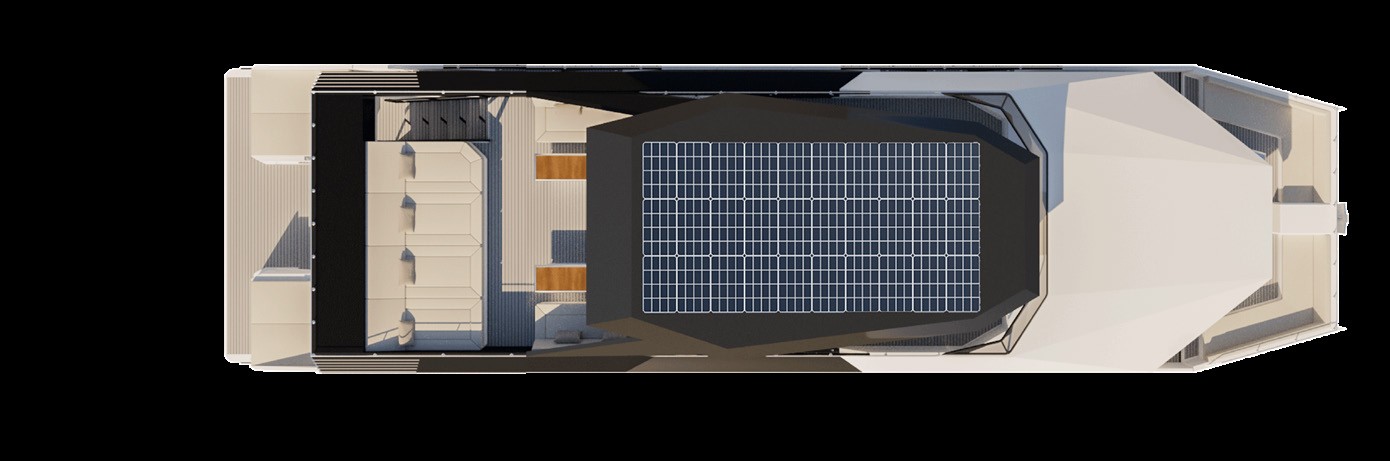

Top Roof

The roof area above the flybridge hardtop, carrying the solar array and shading the upper-deck living space.

The Rise Series

Where the 60 sits

Rise 60Featured

18.3 m

6.5 m beam

Two cabins.

Rise 70

21.3 m

6.5 m beam

Three cabins.

Rise 80

24.4 m

7.8 m beam

Four cabins, on a trimaran hull.

About V-Marine

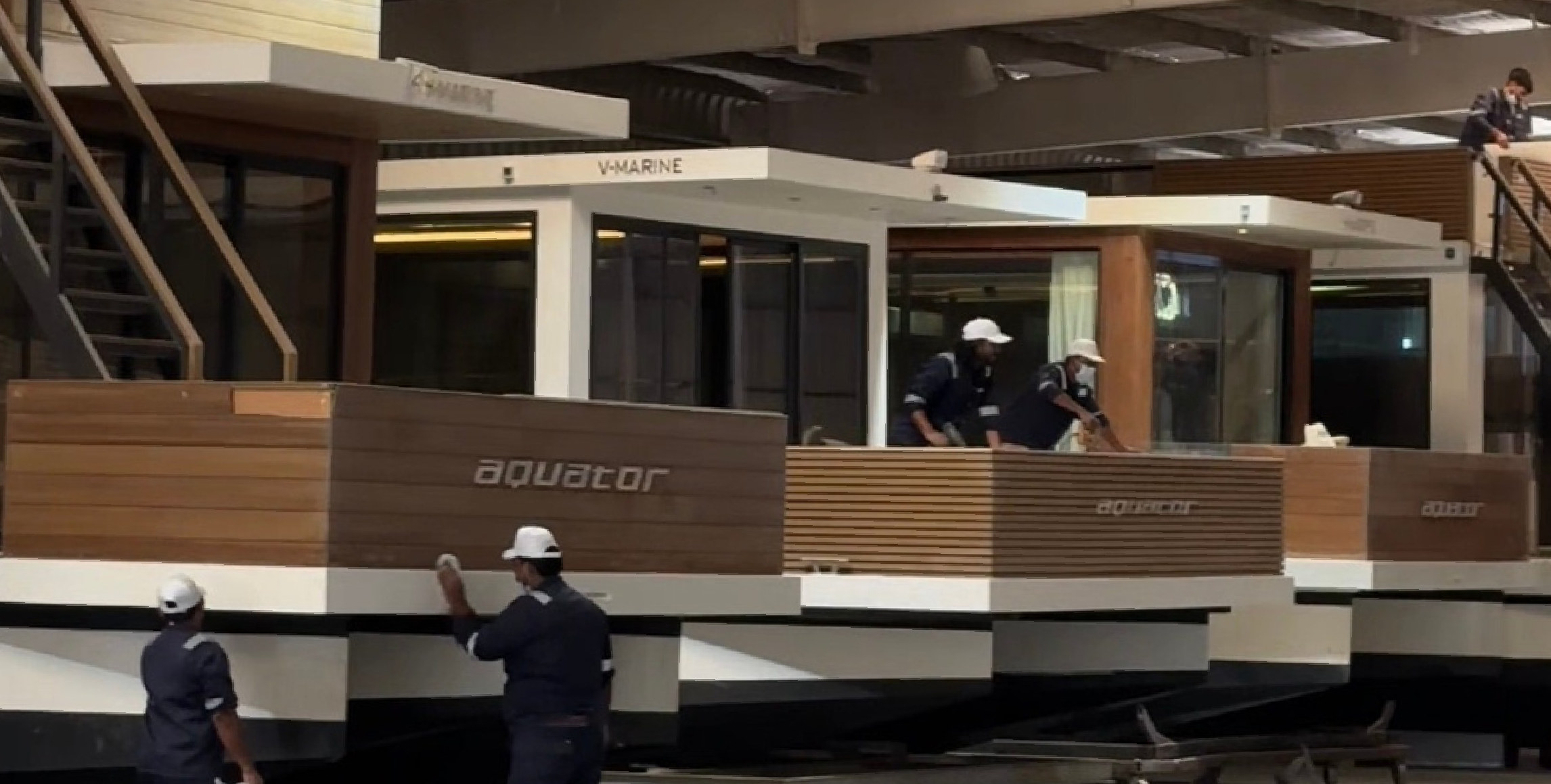

Built under one roof in Bahrain

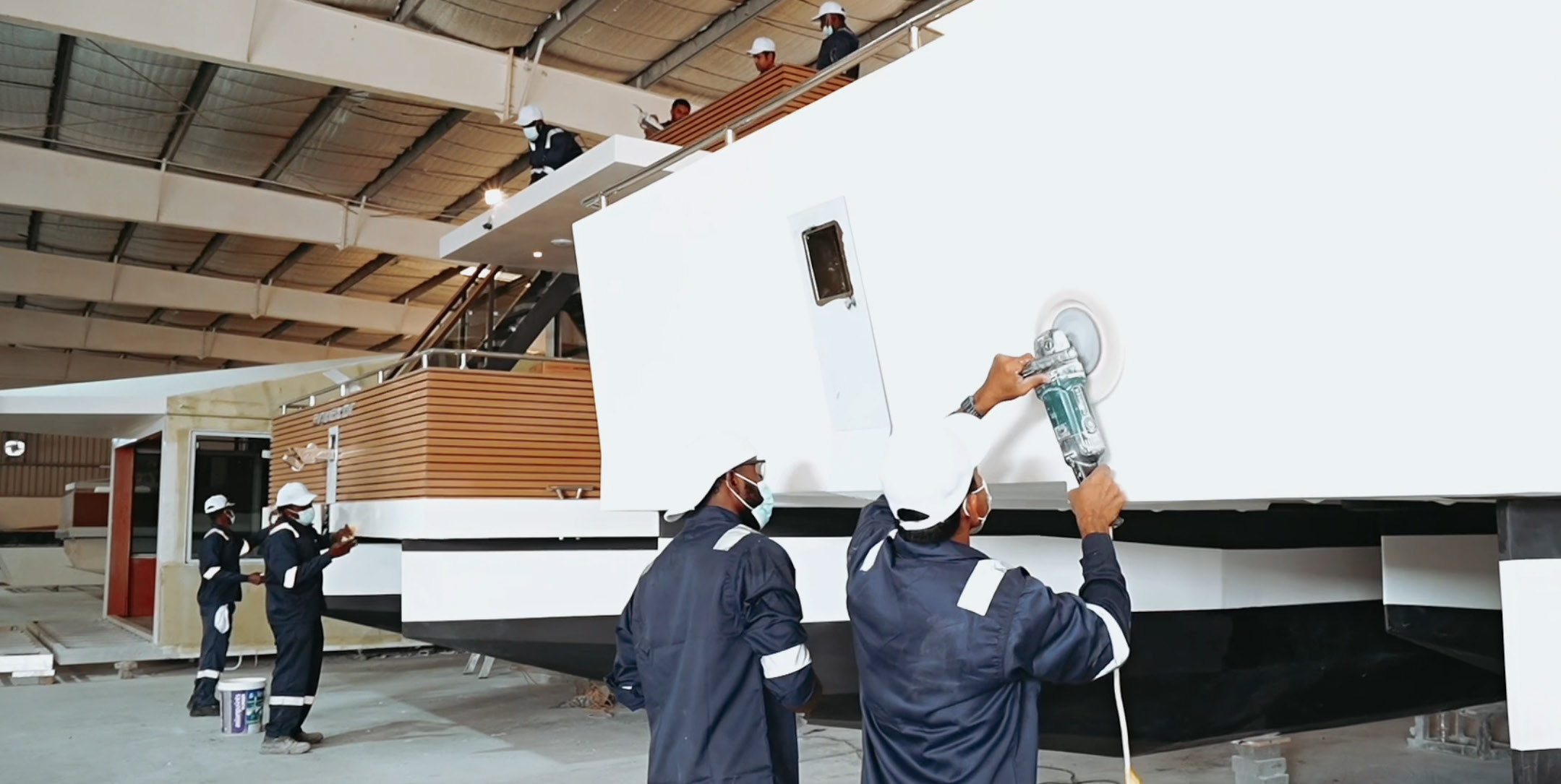

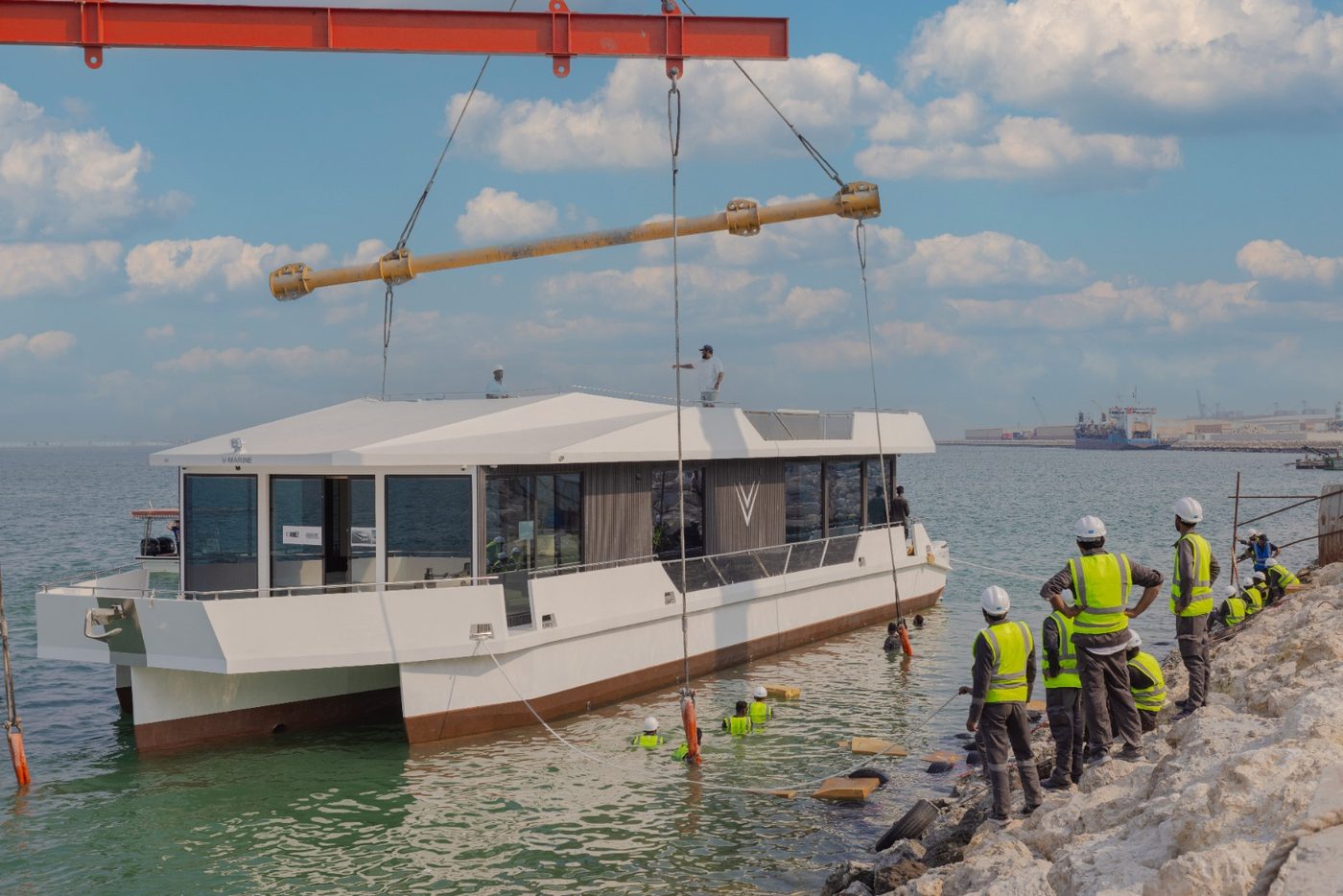

V-Marine builds catamarans, floating resorts and marinas from a 12,000 m² shipyard on Bahrain Investment Wharf, where a team of 150 engineers builds every RISE 60 from mould to handover. Over 50 projects have been delivered so far, among them work for Four Seasons, The Ritz-Carlton and Durrat Al Bahrain, with exports reaching eight countries.
